Large Speaker System (PA)

How to setup the large speaker system

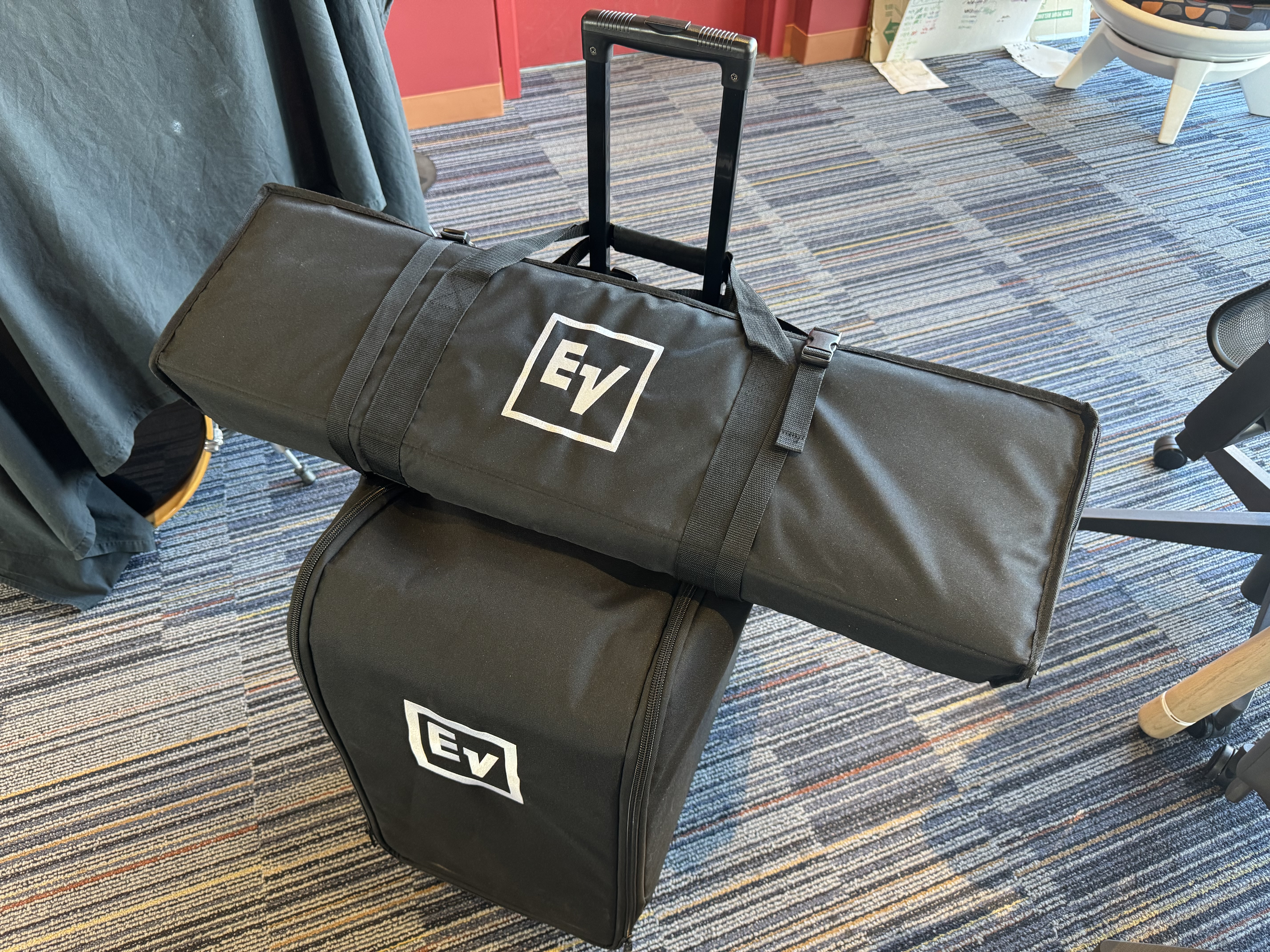

The large speaker system is available at the Tech Bar:

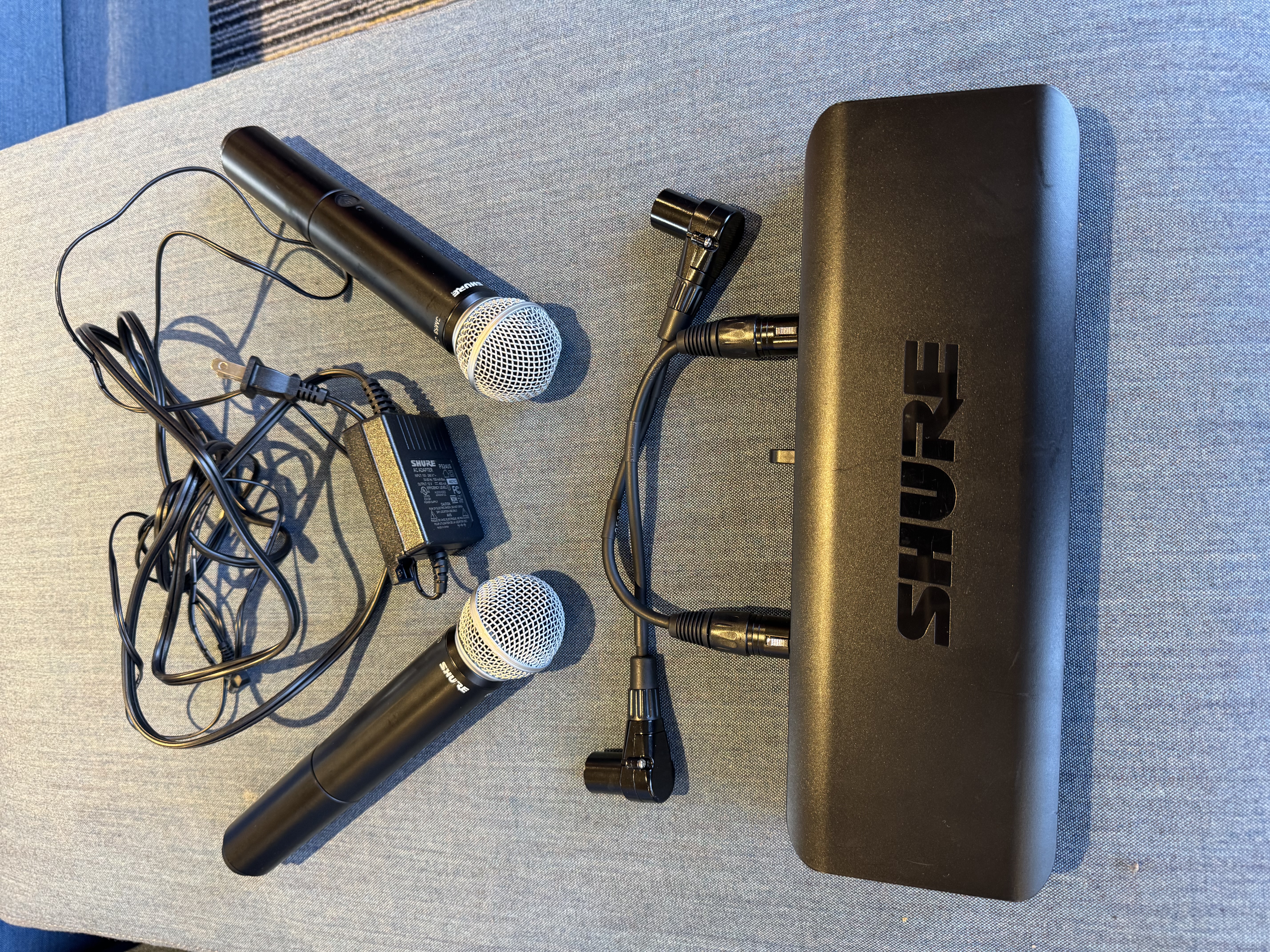

There is also a pair of wireless microphones available:

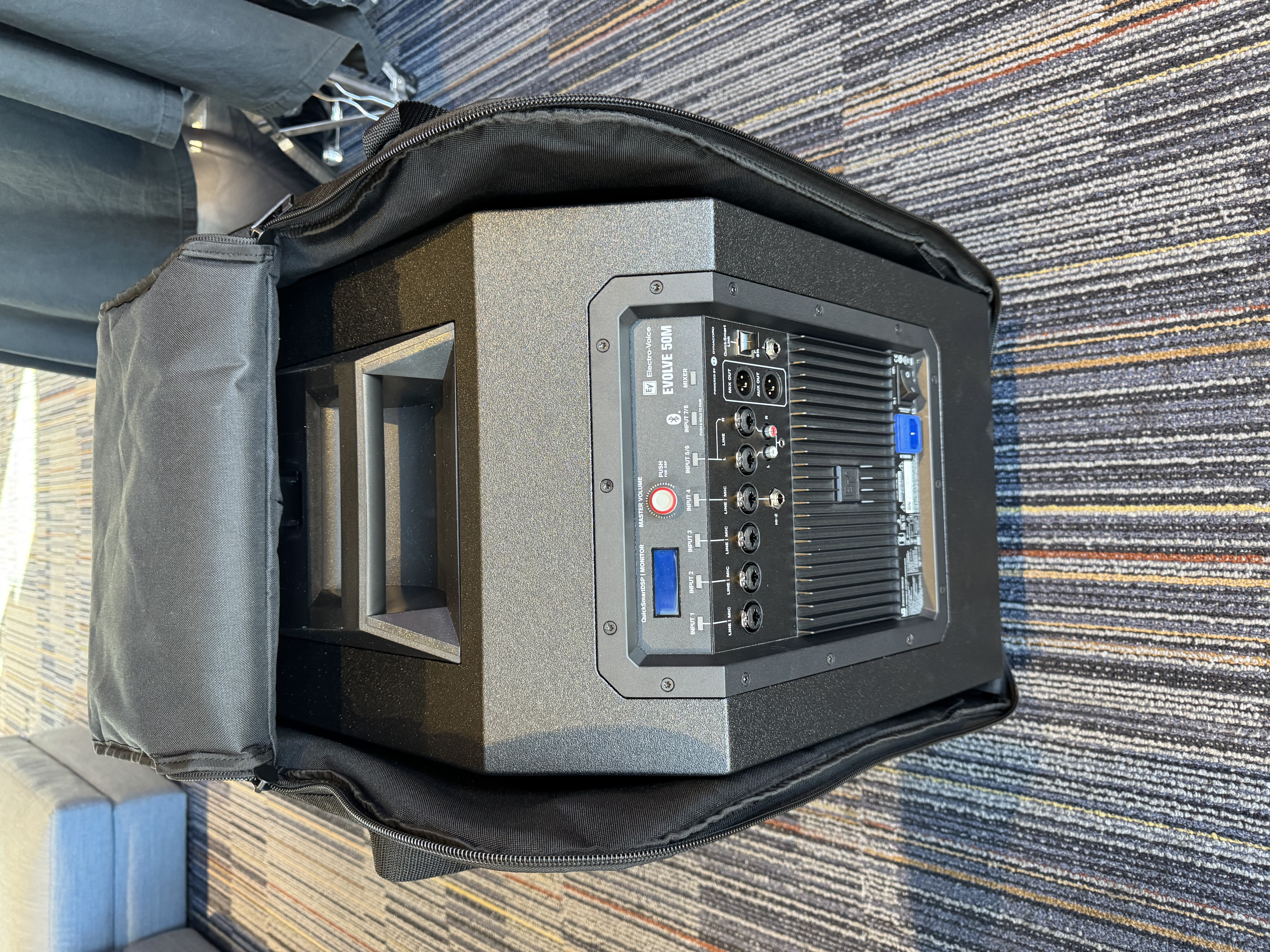

Remove the base unit from the large case:

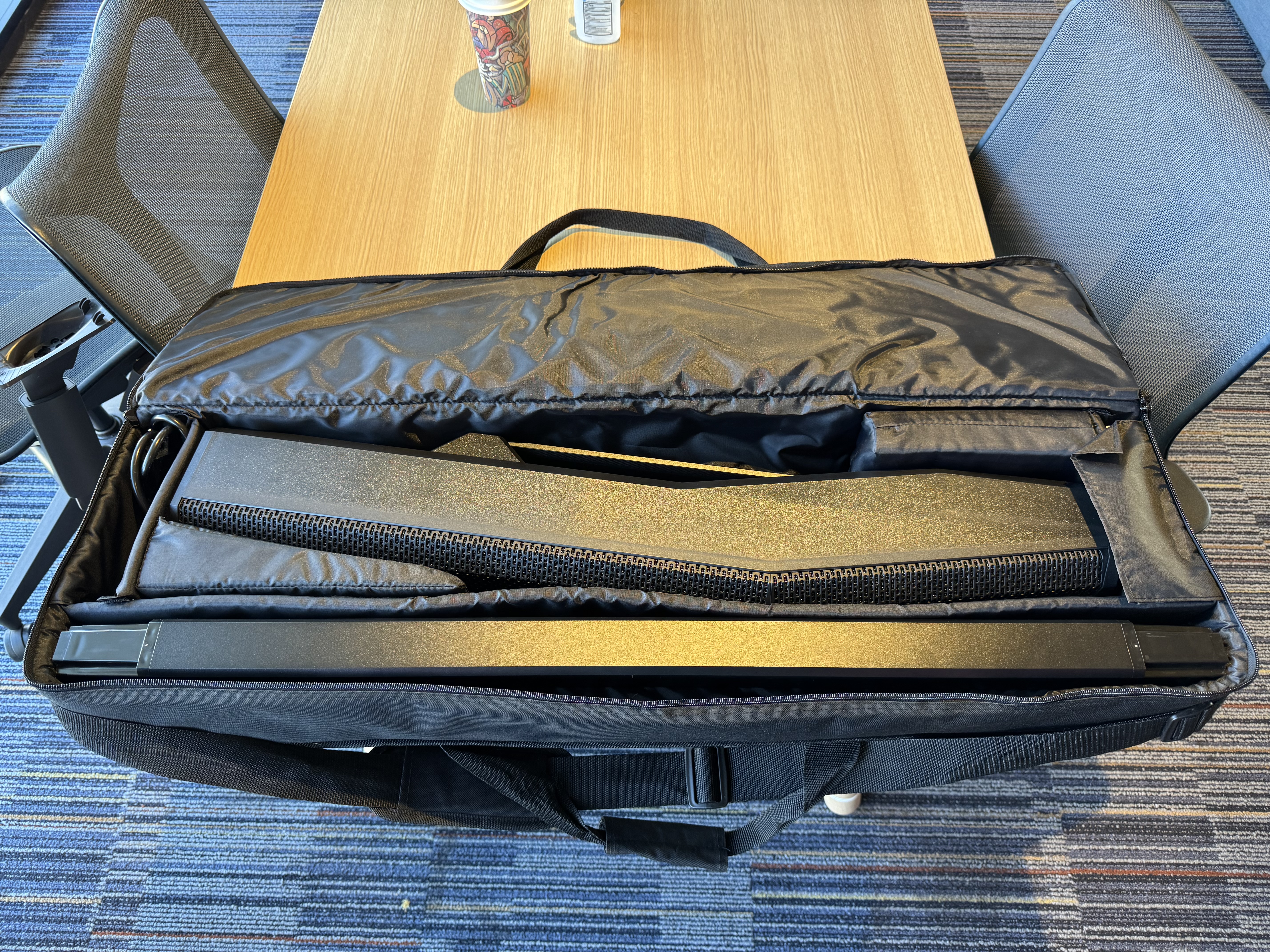

Remove the tower units from the small case:

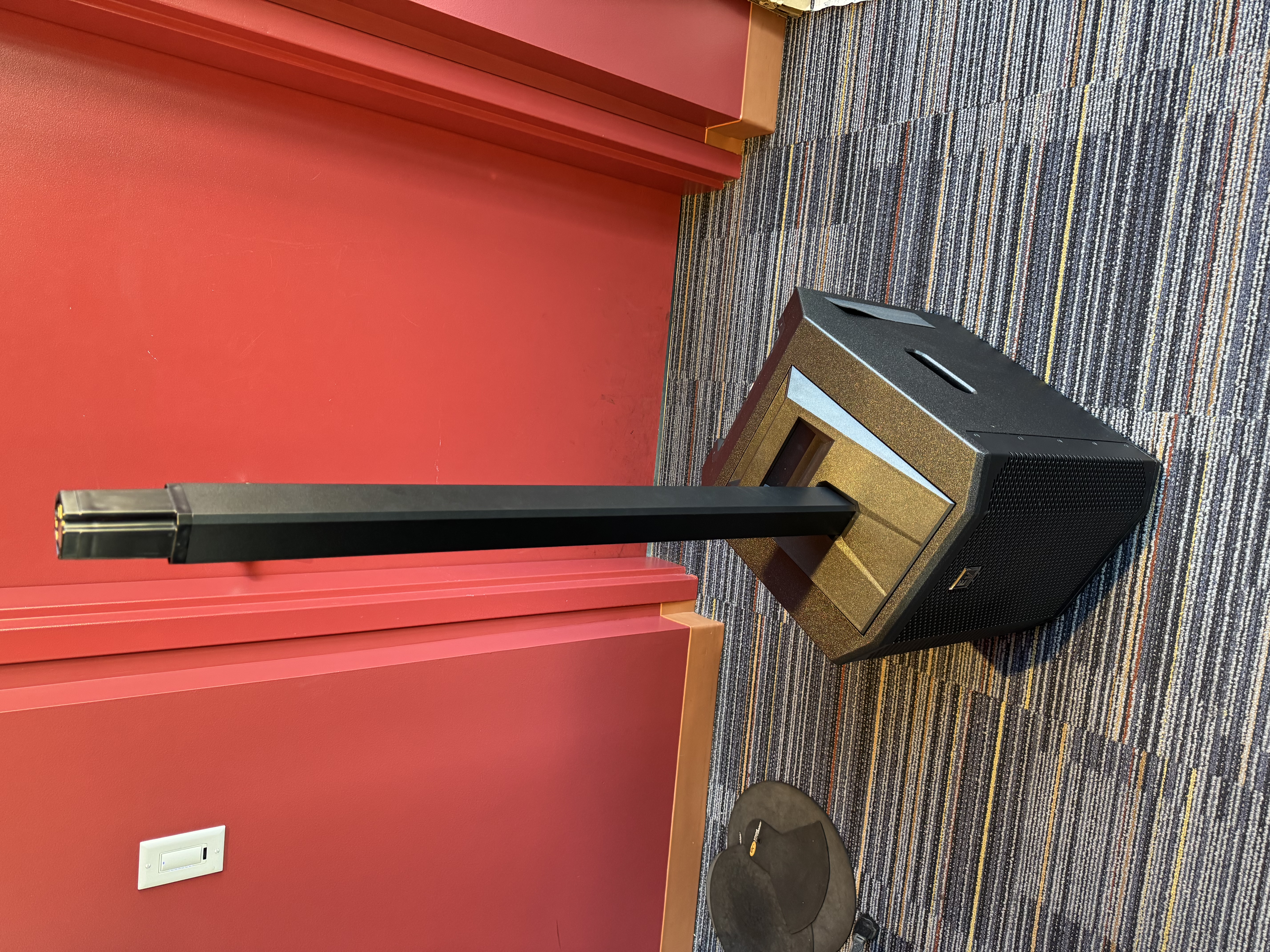

Connect the skinny piece to the base unit:

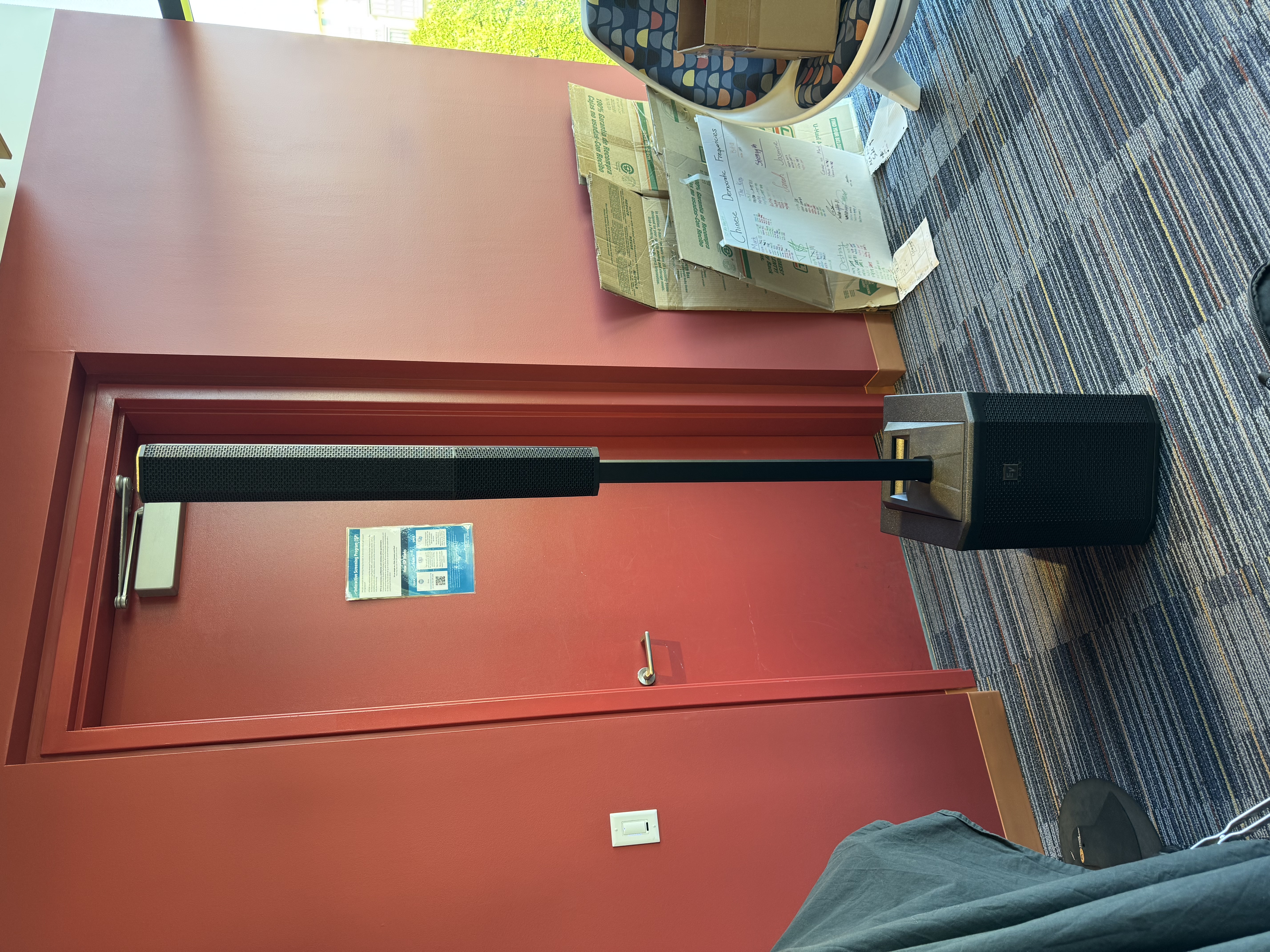

Attach the tower speaker to the skinny piece:

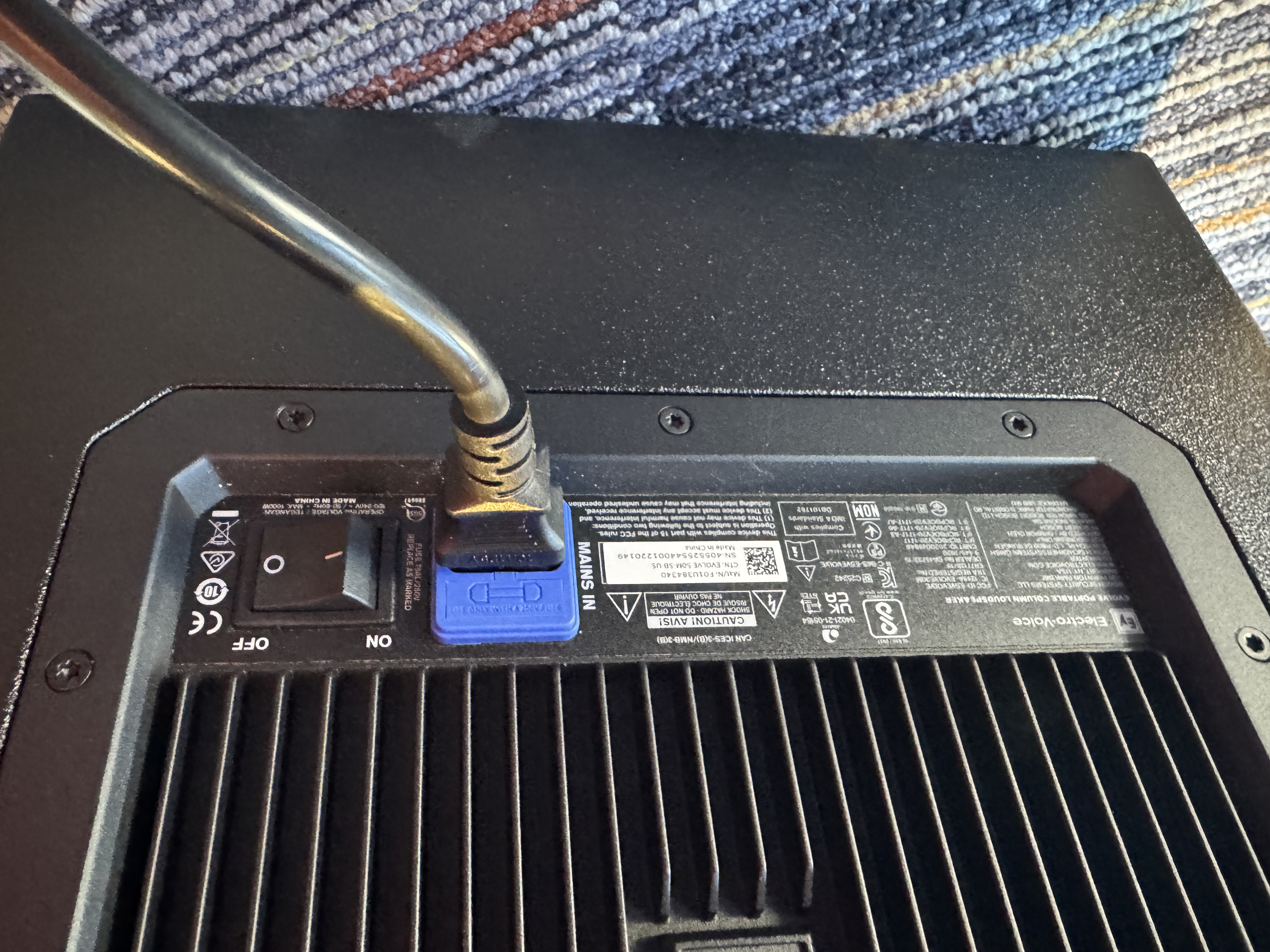

Plug the base unit into the wall:

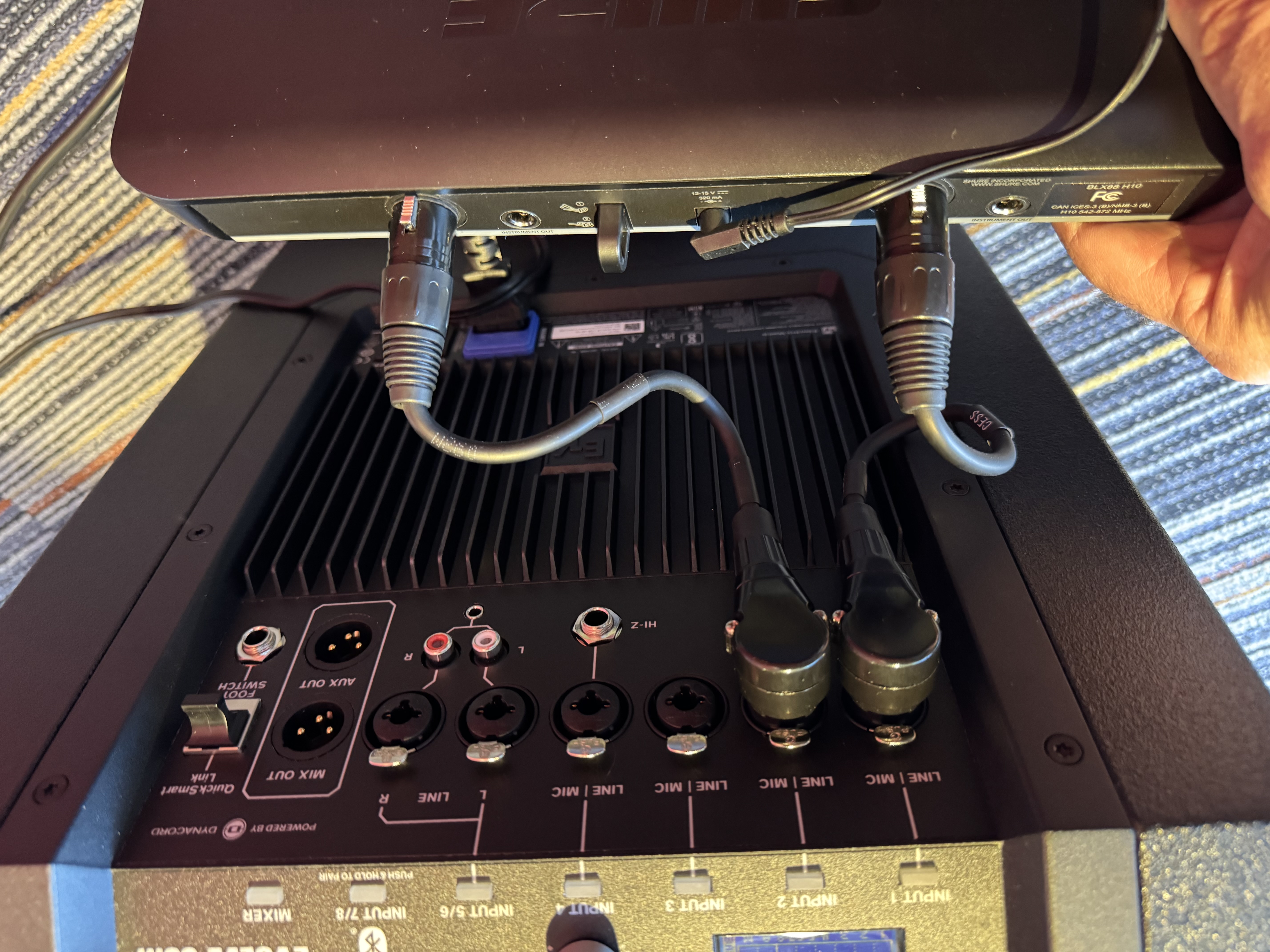

Connect the microphone cables to channel one and two, and plug in receiver:

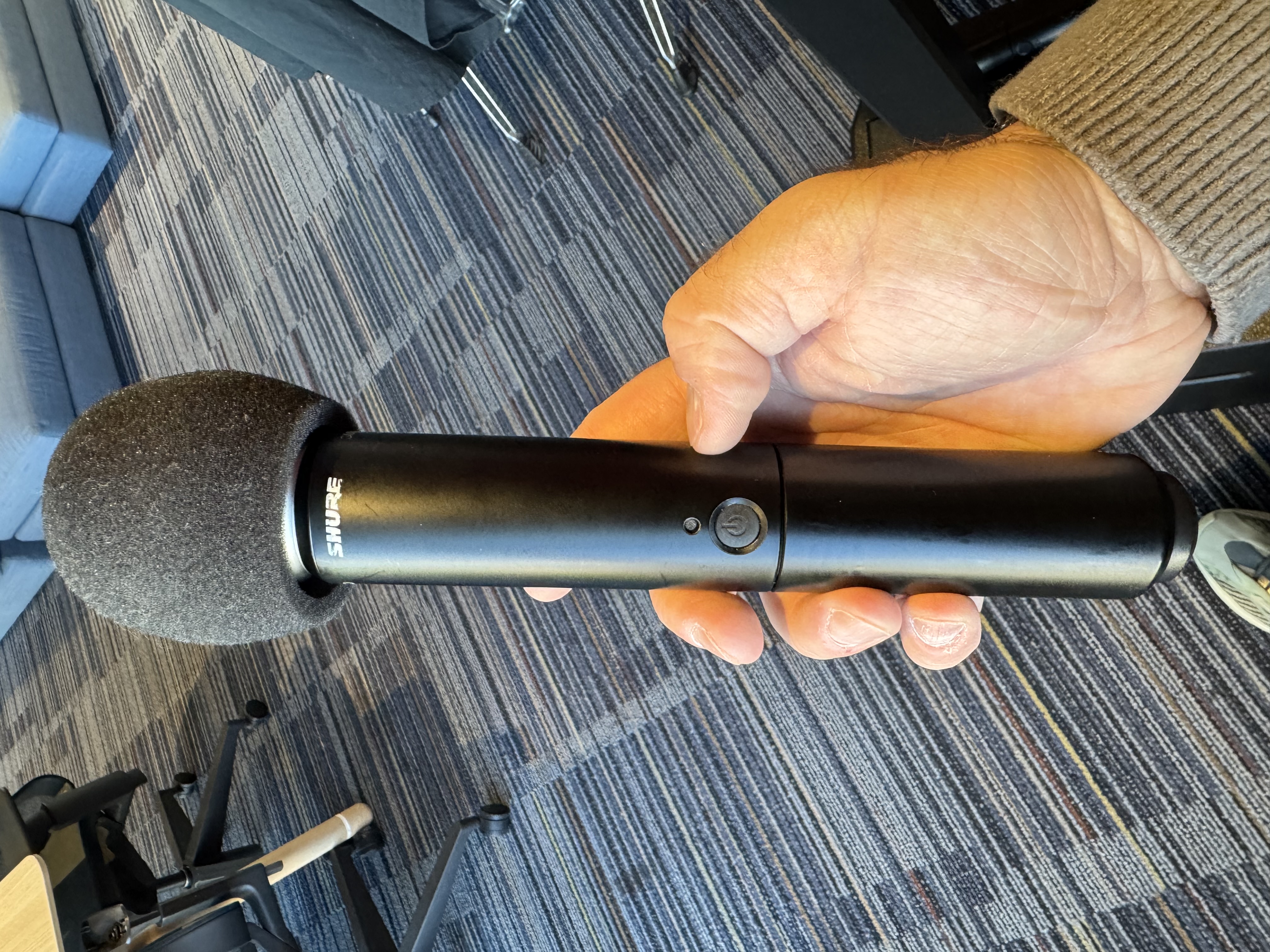

Press the mic power button until the light turns green to use the mic:

User Manuals

Speaker System User Manual

Wireless Microphones User Manual
